Site

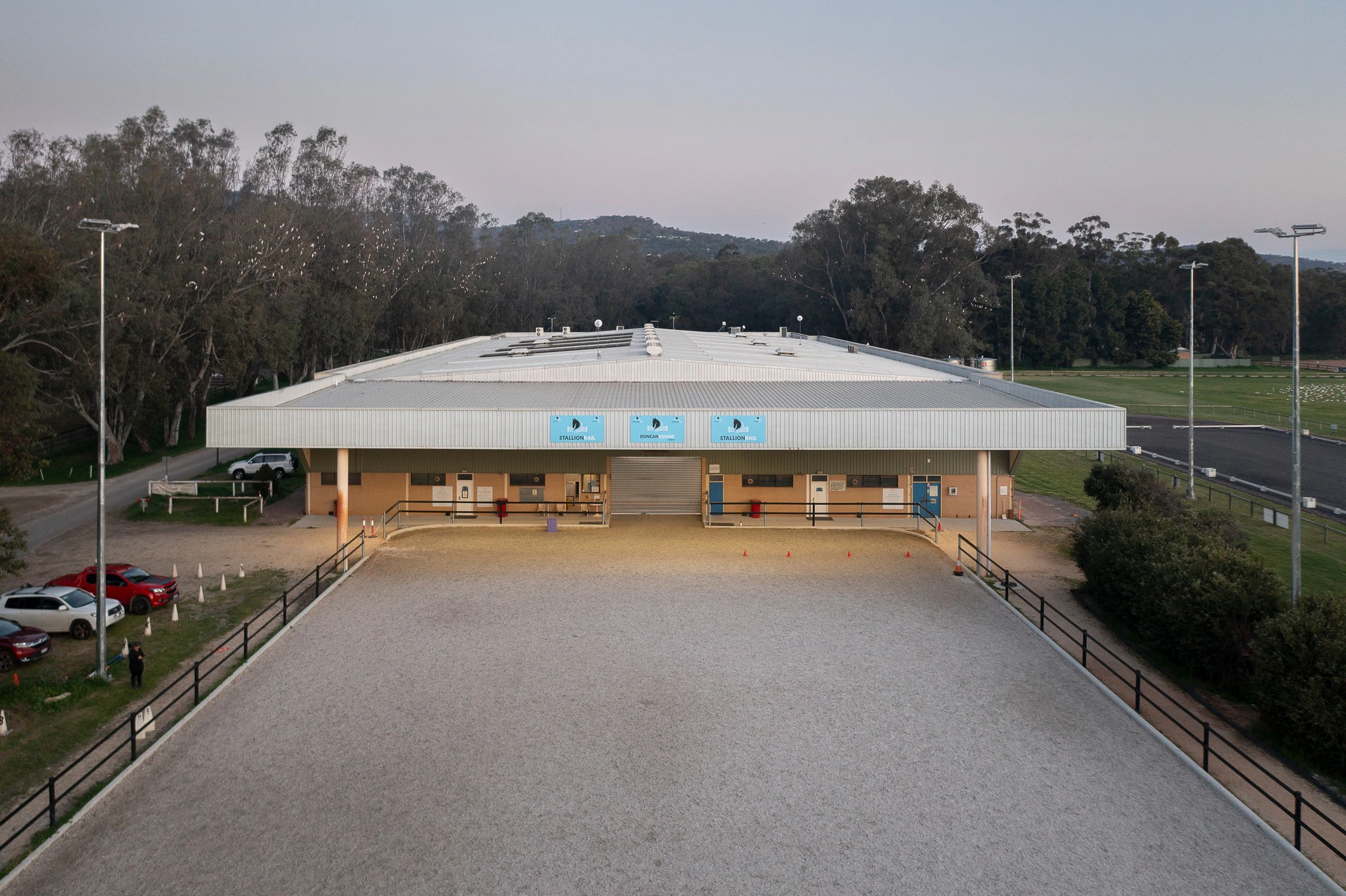

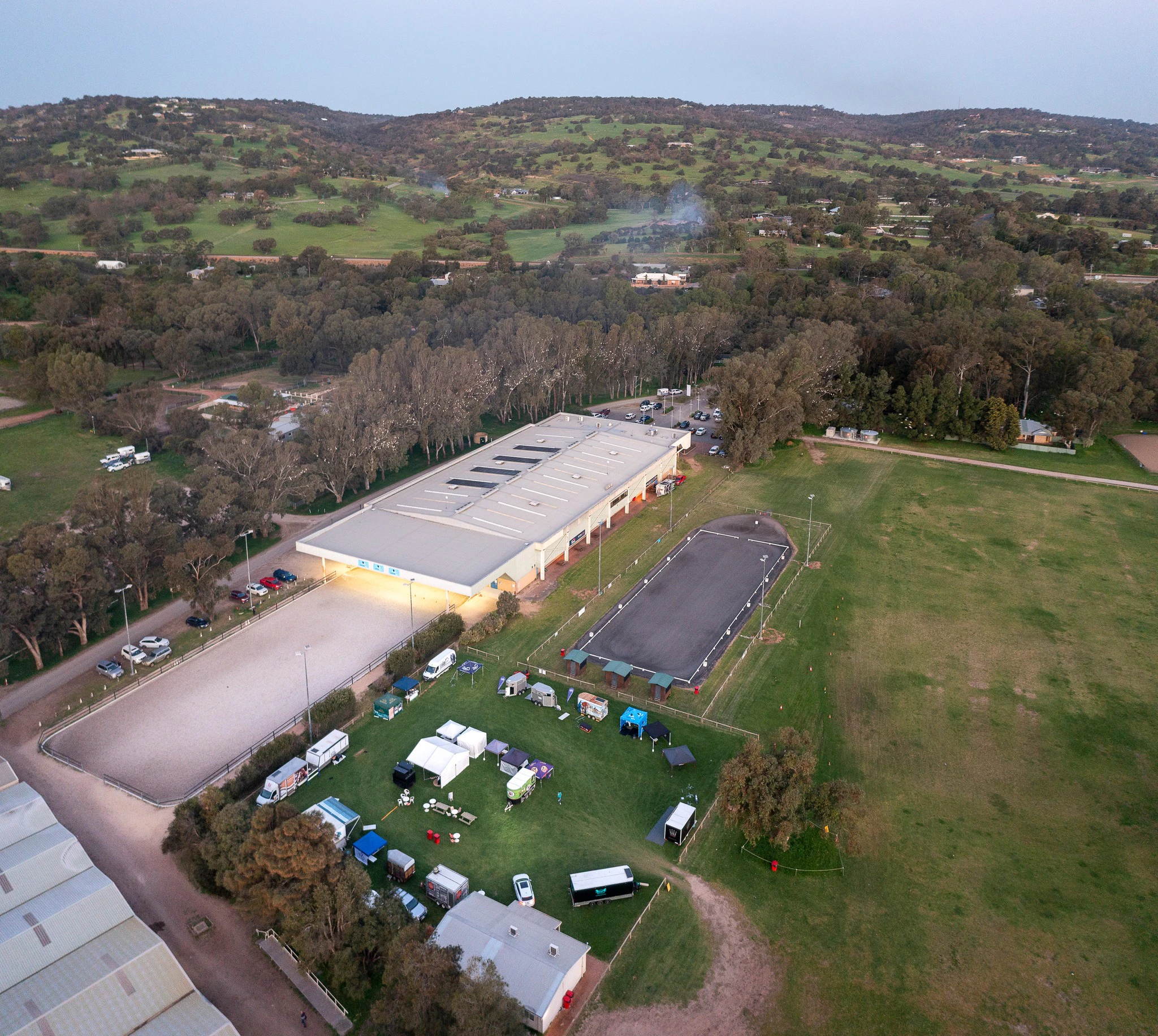

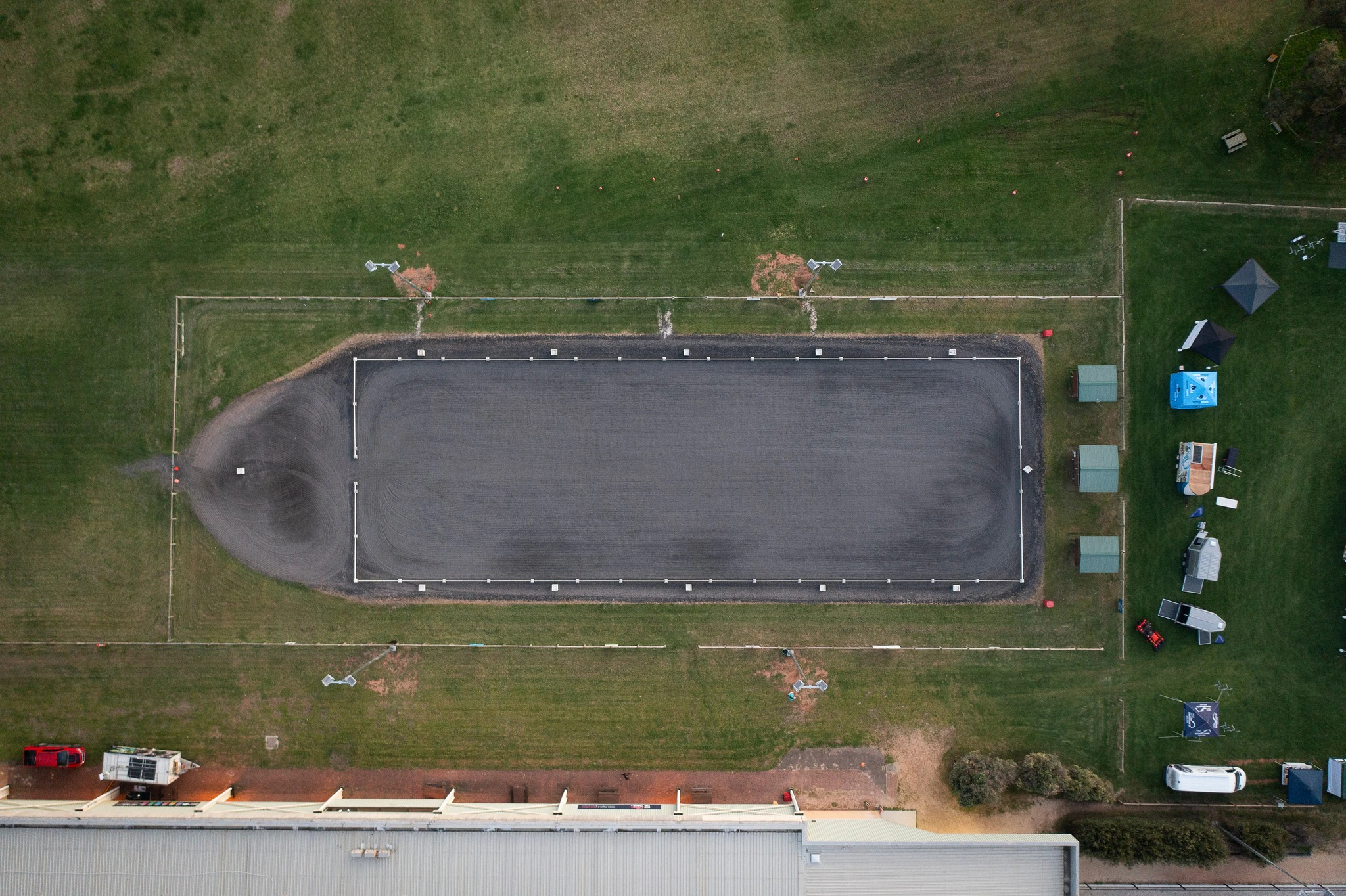

WA State Equestrian Centre
Location
Swan Valley, Western Australia
Lighting Supplier
Integrated Power
Electrical Contractor
Boyan Electrical
Hardware, Commissioning & Training
Holders Technology
Photography
Rebecca De Vries Photography
Providing new lighting controls without any digging or new cables across the WA State Equestrian Centre was achieved using Casambi.
The new lighting and controls at the WA State Equestrian Centre both ensure safety and have hugely improved the facility. The installation was completed by the team at Boyan Electrical, installing efficient LED floodlights provided by Integrated Power.
The new controls are completely wireless meaning a Casambi node has been installed on each pole to create a mesh network across the site. Each node is capable of controlling up to 8x individual lights on each pole (driver dependant), in this case there are 2 per pole. The poles communicate with each other back to a switch installed inside and are also controlled by the groundskeepers' phones using the Casambi app.
Long range nodes have been used meaning the system can be accessed from all over the site, these nodes greatly reduced the installation costs as there was no control wiring between poles.
Some pre-set scenes have been created for training and competition whilst schedules can be set to automatically bring the lights on/off to suit bookings and keep energy usage to a minimum.
With a strong mesh network now already formed at the site, adding further Casambi devices in other areas will be quick, simple and effective.
